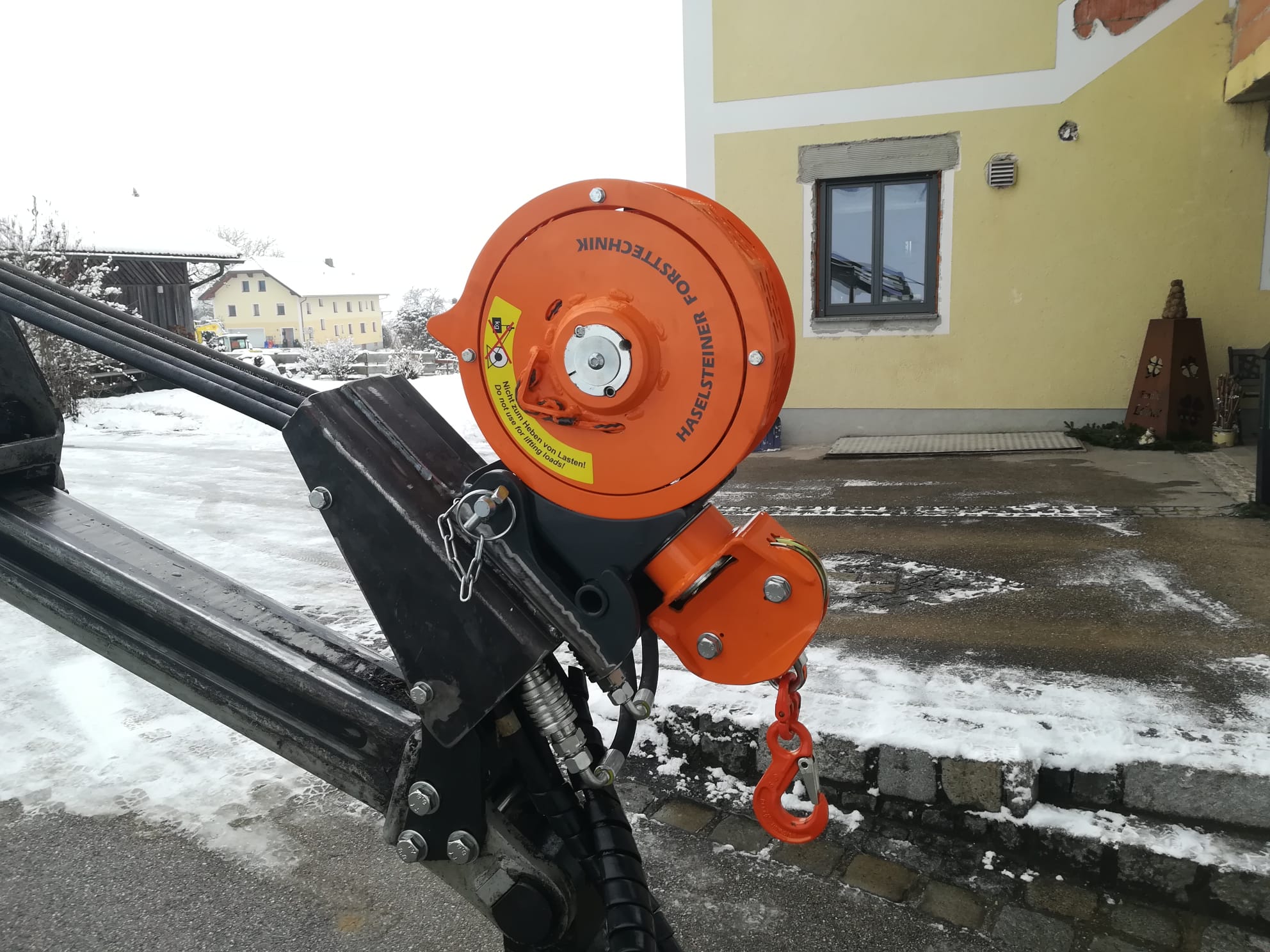

This compact hydraulic auxiliary winch is ideal for farmers, forestry operators and machinery owners who want to pull in heavy loads easily – without having to fit a large forestry winch.

the SAPI PRO It was developed for more demanding tasks where higher pulling forces are required, but where a conventional large forestry winch would still be oversized.

With its higher pulling force, the hydraulic winch helps professional users to move timber and loads efficiently in forestry, agriculture and landscape management.

Typical applications:

• Pulling tree trunks out of the crane’s reach
• Assistance with timber hauling and local timber transport
• Pulling branches, crown material and smaller loads
• Support for log grapples, cranes and various attachments

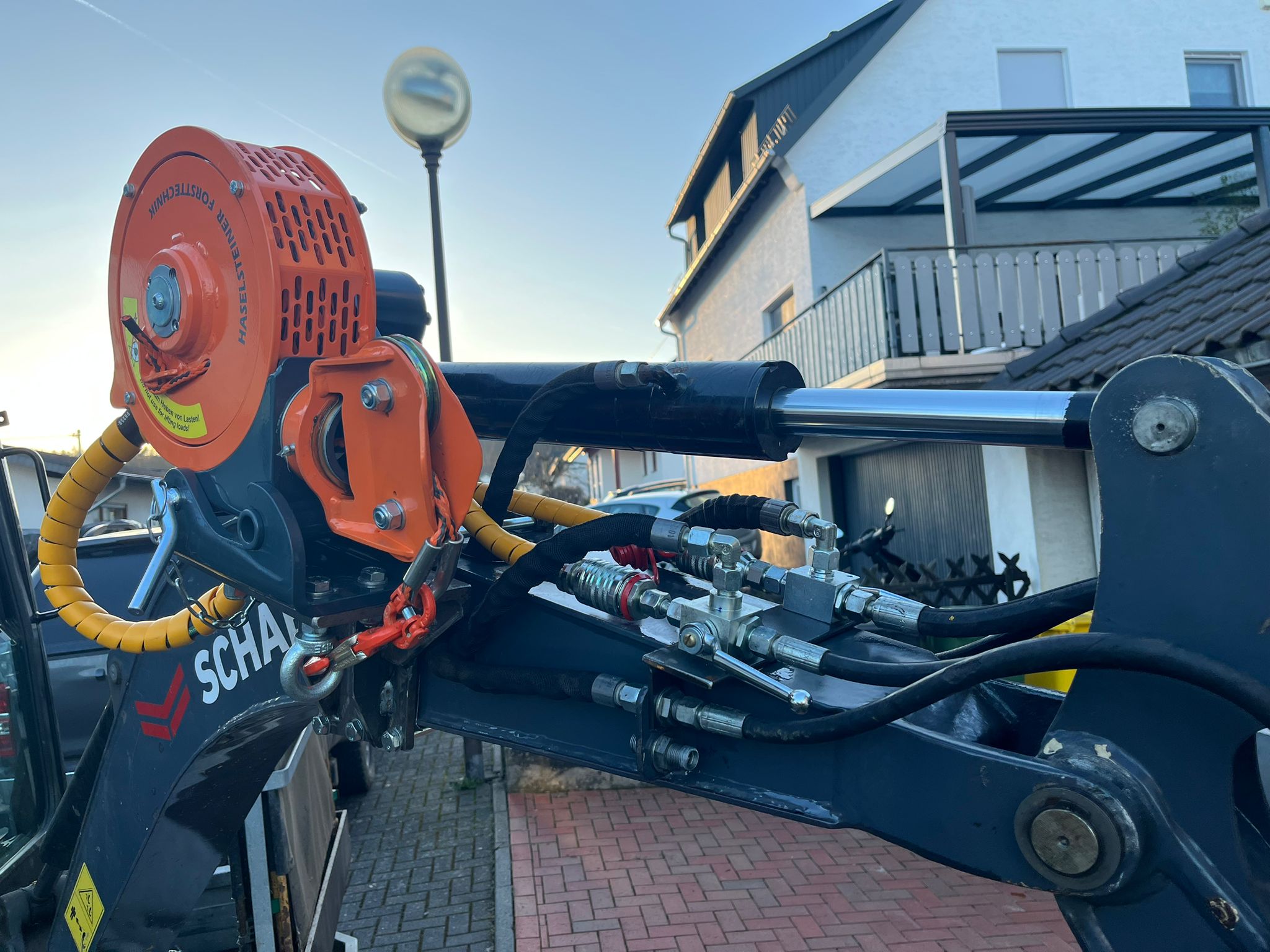

• For use on front-loading loaders, farm loaders, log splitters and excavators
• Flexible auxiliary winch for machines with an existing hydraulic supply

the SAPI Winde PRO is a powerful tensioning aid and a useful addition to existing machineryIt was not designed to replace a traditional large forestry winch, but rather as a compact, mobile solution for tasks that require additional pulling power.

The SAPI PRO winch is not a traditional three-point forestry winch, but rather a kompakte hydraulische Zusatz- bzw. Hilfswinde.

Der Vorteil:
Sie erweitert bereits vorhandene Maschinen und übernimmt Aufgaben, für die eine große Forstwinde oft zu teuer, zu schwer oder unpraktisch wäre

Das hängt von der vorhandenen Hydraulik ab.

Voraussetzungen:

• doppeltwirkender Hydraulikanschluss
• erforderliche Ölmenge ca. 20–60 l/min
• geeigneter Montagepunkt bzw. passende Konsole

Die Winde kann unter anderem an Traktoren, Rückewagen, Frontladern, Kränen, Baggern und weiteren Geräten eingesetzt werden

Yes. The SAPI EASY winch has been designed for easy installation.

With the appropriate quick-change bracket, the winch can be used flexibly and moved quickly if required.

The hydraulic system must be installed correctly to ensure that the winch operates safely and reliably.

Depending on the application, the following are required for full operation:

• suitable mounting bracket
• Hydraulic connections and hoses
• Rope
• optional radio control

The basic winch is the foundation. With the right accessories, it can be turned into a complete working system.

A radio control system enhances convenience and safety.

The operator can monitor the load during the pulling process and does not need to stand right next to the machine.

A clear view of the load, the rope and the surroundings is a major advantage, particularly when working with timber.

Suitable for machines with:

✅ double-acting hydraulic control unit
✅ Oil flow rate 20–60 l/min
✅ Operating pressure up to 210 bar
✅ sufficient hydraulic power

Suitable for:

• Tractors
• farm loader
• Frontlader
• Forwarder

No. The SAPI winch is designed exclusively for pulling loads along the ground.
